Polycarbonate Facades
The Facaplex Polycarbonate Façade is designed to facilitate high-quality cladding using hollow chamber polycarbonate sheets. This system utilizes our straightforward click mechanism, a minimal number of accessories, and the light weight of the panels.
Polycarbonate façades are equipped with UV-resistant coatings that protecting the building’s interior from harmful sun rays. Due to its lightweight design and simply construction system, the translucent building elements and accessories can be installed rapidly.
The alignment can be configured flexibly—whether vertical, horizontal.
By employing clip fasteners, the polycarbonate panels with a satin finish can be affixed to nearly all standard substructures for ventilated rainscreens.
Key Features of Polycarbonate Facades
- Light weight, but good thermal insulation
- Energy efficiency , U values low as 1.5 W/m²K to 0.75 W/m²K
- High load resistance
- Temperature resistant from -40° to +115°
- Easy and quick assembly
- High wind load resistance
- 3 meters unsupported spans can be realized
- thermal insulation properties are better with double wall structures
- Even transmission of light and eliminates glare
Specifications of Polycarbonate Facade
- Basic Product Specifications
| PRODUCT | Polycarbonate Panels 40mm | Polycarbonate Panels 50mm |
|---|---|---|
| Installation Module | 500mm width | 600mm with |
| Wall Structure | Multiwall | Multiwall |
| Wall Thickness | 40mm | 50mm |
| Max Length | Standard Up to 11.8 meters | Standard Up to 11.8 meters |
| U Value(W/m2K) | Minimum of 0.72 | Minimum of 0.72 |
| Light Transmission | Up to 30% | Up to 30% |
| Free Span Between Supports | 3 meters | 4 meters |
| 10 Year Warranty | Yes | Yes |
| Resistant To Fire | B | B |

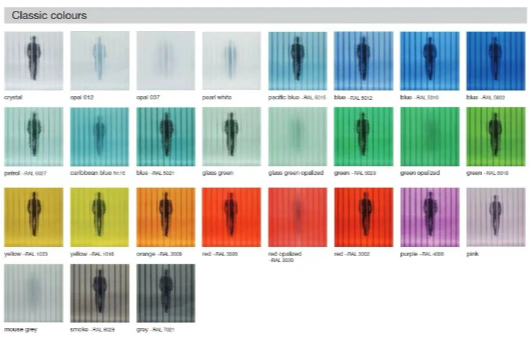

- Colorful Options
- Aluminum Options
Applications of Polycarbonate Facades
- Polycarbonate Facade Panels for Commercial Buildings
- Polycarbonate Facade for Hotels
- Polycarbonate Facade System for Modern Architecture
- Polycarbonate Facade for Schools and Universities
- Polycarbonate Facade for Hospitals
Services Offered
We provide fabrication and thermoforming services for polycarbonate solid sheets, complemented by top-tier silkscreen printing. Our skilled team can create tailored shapes and designs, improving both the aesthetic and functional aspects of polycarbonate products for a wide range of applications.
1. Vacuum thermoforming for polycarbonate sheets
DBI showcase the iconic columns on the main entry of W Brisbane, with a reflective ceiling and illumination to create a unique effect.
But polycarbonate materials convey the concept of a lightweight and light-transmitting design concept, they also retain the metallic texture of aluminum panels.
2. Silkscreen printing and digital printing on polycarbonate sheets
Allows for personalized graphics, logos, and text tailored to specific preferences. Offers efficient printing for both small and large projects.
Louis Vuitton Maison Osaka Midosuji utilizes washi paper and glass curtain walls in its design. However, polycarbonate (PC) can achieve a similar effect when silk screen printing techniques, providing a lightweight and versatile alternative that captures the aesthetic qualities of traditional materials.
Why Choose Us
- Expertise in Manufacturing As a leading polycarbonate manufacturing and fabrication factory, we specialize in products and processing manufacture. We’re a group company specialized in construction field, we can produce a wide range of aluminum products tailored to your specific plastic sheets need.
- Design Capability Our team of experienced professionals is committed to transforming your ideas into innovative solutions. We work closely with clients to deliver customized designs that align with their vision and functional requirements.
- Quality Assurance We prioritize quality at every stage of production, from sourcing raw materials to final inspection, ensuring that our products exceed industry standards.
- Competitive Pricing Our efficient manufacturing processes and direct sourcing of materials enable us to offer competitive pricing without compromising on quality.
- Short Delivery Time
- Comprehensive Support From initial consultation to modular facade design, post-production transportation support, we provide comprehensive assistance throughout the entire project.
